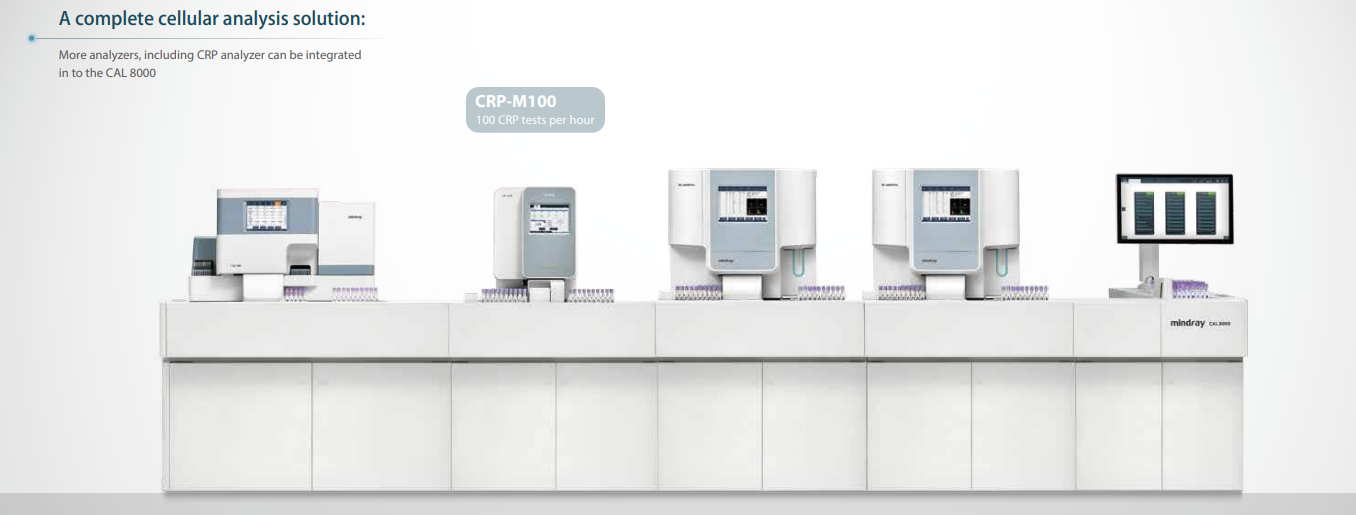

Mindray CAL 8000
Cellular Analysis Line
The Mindray CAL 8000 is a high-performance hematology workstation that integrates automated analyzers and slide makers into a seamless track system. Designed for high-volume labs, it optimizes workflow, reduces manual touchpoints, and delivers consistent, high-quality results.
Key Highlights
- Integrated Workflow: Seamless connection between Hematology Analyzers and Slide Maker.
- High Throughput: Process up to 1100 samples per hour depending on configuration.
- labXpert Software: Advanced data management with auto-validation rules.
- Touch Operation: Intuitive touch screen interface for each unit.

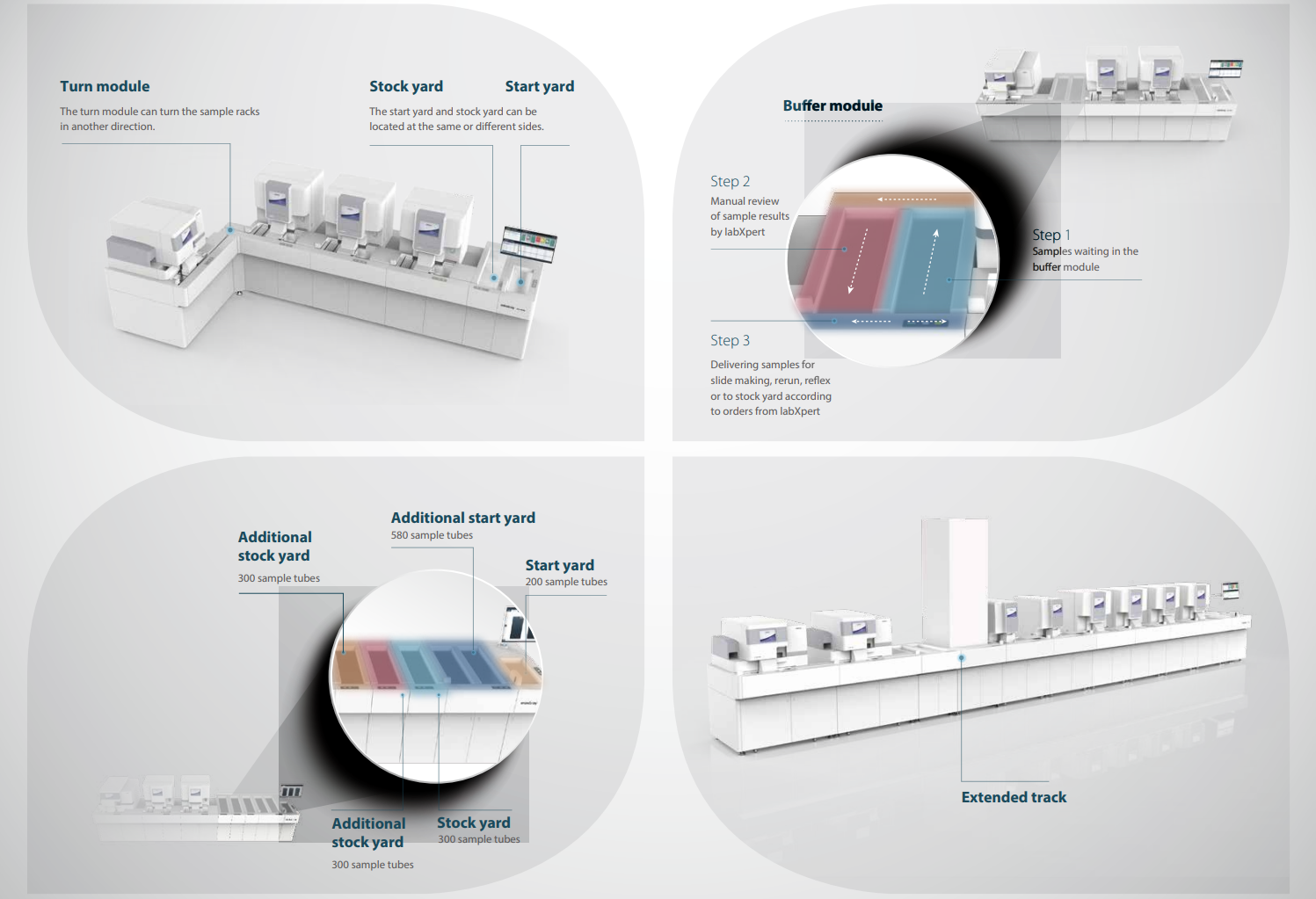

Smart Automation
- One-Touch Loading: Load racks directly onto the track; the system automatically distributes them.
- Reflex Testing: Automatic re-run and reflex slide making based on criteria.
- Balanced Workload: Intelligent distribution algorithm prevents bottlenecks.
Efficiency & Quality
- SF Cube Technology: 3D analysis using Scatter, Fluorescence, and Cube technology.
- Low Micro-Sampling: Requires minimal blood volume.
| Configuration | Flexible (1-4 Units + Slide Maker) |
| Max Throughput | Up to 1100 tests/hour |
| Slide Making | Up to 120 slides/hour |
| Sample Loading | Continuous loading with large buffer |
| Software | labXpert Data Management |
System Components
The CAL 8000 configuration typically includes:
- BC-6800Plus: Auto Hematology Analyzer.
- SC-120: Auto Slide Maker & Stainer.
- CM-320: Track module.
