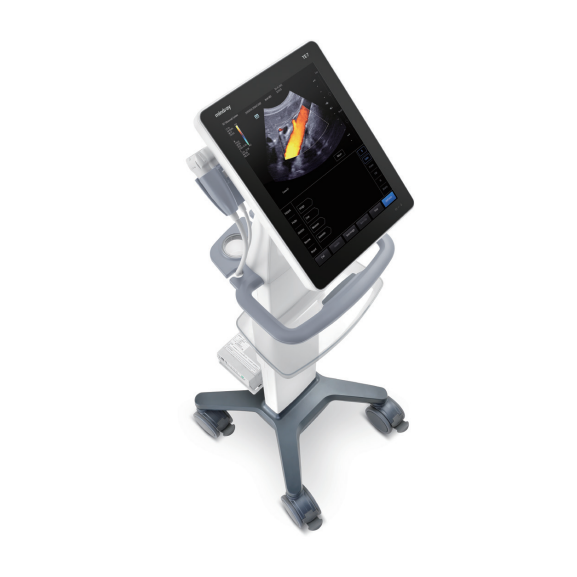

Mindray TE7

Touch Enabled. Gesture Control. Focused Point of Care.

The TE7 is a dedicated Point-of-Care (POC) ultrasound system designed to simplify complex diagnostic procedures. With its 15-inch anti-glare touch screen, intuitive gesture controls, and specialized tools like iNeedle+™, it delivers superior confidence for anesthesia, emergency, and critical care environments.

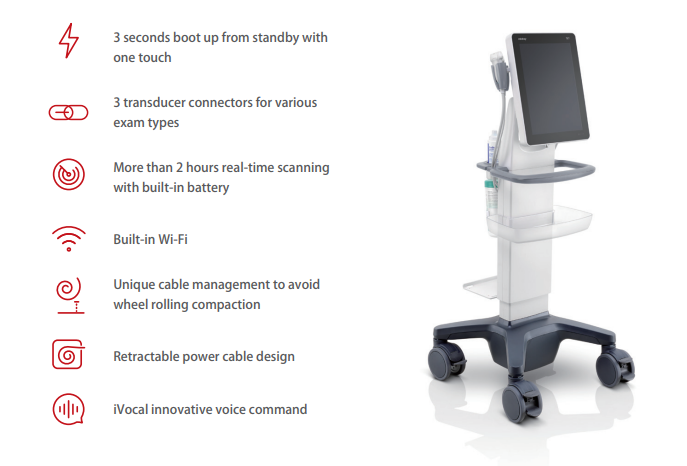

Key Highlights

  • Intuitive Touch: 15-inch Anti-glare Touch Screen with gesture controls (swipe, pinch, zoom).
  • iNeedle+™: Advanced needle visualization technology for precise guidance.
  • Seamless Design: Flat screen with no knobs or buttons for easy cleaning and disinfection.
  • Rapid Response: 3-second boot-up from standby for immediate use.
  • Smart Tools: Smart B-line for lung assessment and iVocal for voice control.
Download Brochure

Simple & Smart Operations

  • Gesture Control: Operate the system like a tablet—pinch to zoom, swipe to expand imaging area.
  • iNeedle+™: Automatically identifies the needle and enhances its visualization while maintaining tissue clarity.
  • Smart B-Line: Automated calculation of B-lines percentages and distance for rapid lung assessment in ER/ICU.
  • iTouch™: One-touch image optimization for B-mode, Color, and PW Doppler.

Designed for POC

  • Screen Lock: Easily lock the screen for cleaning during exams (10s lock).
  • Cable Management: Innovative cable management prevents dragging and contamination.
  • eSpacial Navi: Magnetic needle navigation technology for out-of-plane guidance (Optional).
Display 15-inch IPS Anti-glare Touch Screen
Boot Time Less than 3 seconds (from Standby)
Battery Built-in Li-ion Battery (2+ hours continuous scanning)
Probe Connectors 3 Active Transducer Sockets
Connectivity Wi-Fi, Bluetooth, DICOM, USB
Disinfection Seamless glass surface, resistant to harsh disinfectants
Imaging Modes B, M, Color, Power, PW, CW, Needle Guidance

Focused Point-of-Care Solutions

The TE7 is tailored for specific clinical environments where speed and hygiene are paramount:

  • Anesthesia & Pain Management: Superior needle visualization for nerve blocks and vascular access.
  • Emergency Medicine (ER): Fast FAST scans, Lung ultrasound (Smart B-line), and cardiac assessment.
  • Critical Care (ICU/CCU): Bedside assessment with a slim footprint and rapid wake-up.
  • Musculoskeletal (MSK): High-frequency linear probes for superficial structures and injections.
