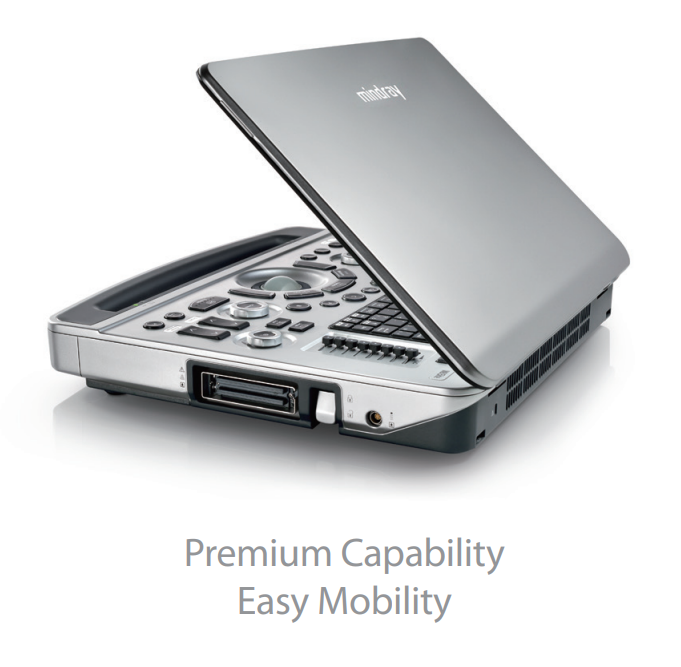

Mindray M8

Premium Capability. Efficient Mobility.

The Mindray M8 is a premium portable ultrasound system that redefines mobile scanning. Built on the new generation mQuadro platform and featuring 3T Single Crystal transducer technology, it delivers the high-end performance of a cart-based system in a slim, durable laptop design perfect for challenging shared-service environments.

Key Highlights

  • 3T Technology: Single Crystal transducers for deeper penetration and clearer images.
  • mQuadro Platform: High-end architecture for fast, accurate signal processing.
  • Cardio-Vascular Focus: Equipped with LVO, TT QA, and Echo Boost for cardiac confidence.
  • Durable Design: Magnesium alloy body for durability and thermal dissipation.
  • HDR Flow: High Dynamic Range Flow for visualizing difficult micro-vessels.
Download Brochure

Premium Imaging Technology

  • 3T Transducer Technology: Mindray’s unique patent increases bandwidth and transmission efficiency for superior resolution.
  • Echo Boost™: Intelligent signal processing technique that enhances contrast resolution, especially in cardiac chambers.
  • HR Flow: Better visualization of tiny vessels and complex flow patterns.
  • UWN+ Contrast: Ultra-Wideband Non-linear contrast imaging for improved sensitivity and longer perfusion time.

Intelligent Workflow

  • iTouch™: Instant one-button auto image optimization.
  • Smart Track: Continuously tracks the color flow and optimizes the color box position and angle.
  • iStation™: Robust patient information management system allowing retrieval, editing, and storage.
Display 15.6-inch High Resolution LED Monitor
Body Material Magnesium Alloy (Durable & Light)
Battery Built-in Li-ion Battery (90 min continuous scanning)
Hard Disk SSD (Solid State Drive) for rapid boot-up
Probe Connectors 1 Active (Expandable via trolley)
Connectivity USB 3.0, HDMI, Wi-Fi, DICOM
Imaging Modes B, M, Color, Power, PW, CW, TDI, Contrast, 3D/4D

High-Performance Clinical Solutions

The M8 is designed to perform at a premium level across difficult patients:

  • Cardiology: Complete package including Tissue Tracking (TT QA), Auto EF, and LVO with Contrast.
  • Vascular: Excellent hemodynamics with HR Flow and Auto IMT measurements.
  • Radiology: Superior abdominal imaging with Single Crystal probes and Elastography.
  • Point of Care (POC): Rapid boot-up, needle visualization, and high portability for ICU/ER.
