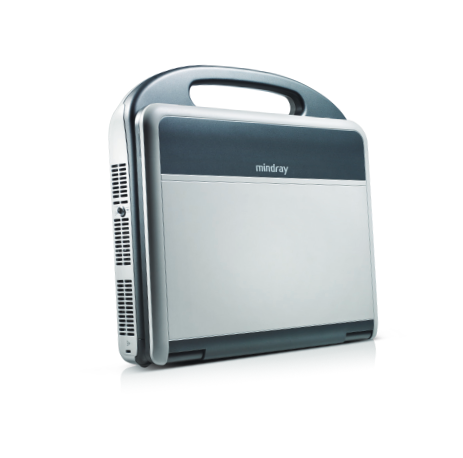

Mindray M6

Performance within Reach. Premium Portable.

The Mindray M6 is a powerful, compact portable ultrasound system designed to bring high-end capability to the bedside. Powered by the mQuadro platform, it delivers premium imaging performance and advanced signal processing in a lightweight laptop design, making it ideal for shared services and mobile applications.

Key Highlights

  • mQuadro Platform: Advanced architecture for rapid signal processing and clarity.
  • Highly Portable: Slim, lightweight design with a robust 1.5-hour battery.
  • Cardio-Vascular Excellence: Includes Tissue Tracking, Auto EF, and Echo Boost.
  • HDR Flow: High Dynamic Range Flow for visualizing difficult micro-vessels.
  • UWN+ Contrast: Ultra-Wideband Non-linear contrast imaging for better sensitivity.
Download Brochure

Advanced Technologies

  • HR Flow: High Resolution Flow to visualize tiny vessels and complex flow patterns.
  • iNeedle™: Needle visualization technology for confident interventional procedures.
  • iTouch™: One-button auto image optimization for instant quality improvement.
  • Echo Boost™: Adaptive signal processing designed to improve heart chamber visualization.

Intelligent Workflow

  • iStation™: Powerful patient information management system.
  • MedSight: Transfer clinical images and videos to your smart device via Wi-Fi.
  • Auto Measurement: Smart OB, Auto IMT, and Auto EF measurement packages.
Display 15.6-inch High Resolution LED Monitor
Weight Approx. 6 kg (Ultra-portable)
Battery Built-in Li-ion Battery (90+ mins continuous scanning)
Storage 1 TB High Capacity Hard Disk
Probe Connectors 1 Active (Expandable to 3 with mobile cart)
Connectivity USB, HDMI, DICOM, Wi-Fi
Imaging Modes B, M, Color, Power, PW, CW, TDI, Contrast, 3D/4D

Shared Service Versatility

The M6 is a true shared-service portable system:

  • Cardiology: Complete cardiac package with TDI, Free Xros M, and Tissue Tracking.
  • Vascular: Auto IMT and high-sensitivity flow for peripheral vessel assessment.
  • Radiology: Excellent penetration and contrast resolution for abdominal scans.
  • Point of Care (POC): Fast boot-up and iNeedle for MSK and Anesthesia guidance.
  • OB/GYN: 3D/4D capabilities and automated biometry tools.
