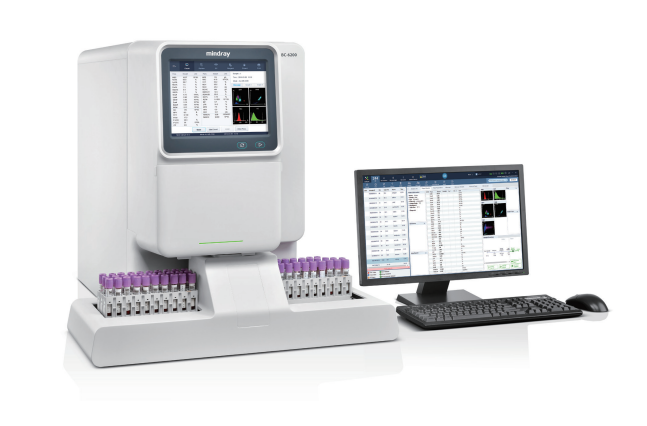

Mindray BC-6200
Auto Hematology Analyzer with 5-Part Diff
The BC-6200 provides accurate, reliable, and high-throughput hematology results. Utilizing the innovative SF Cube technology, it delivers precise 5-part differential analysis and RET detection, streamlining laboratory workflow for mid-to-high volume labs.
Key Highlights
- SF Cube Technology: 3D analysis using Scatter, Fluorescence, and Cube technology.
- High Throughput: Up to 110 tests per hour (CBC+DIFF).
- Body Fluid Analysis: Standardized detection for various body fluids.
- Low Sample Volume: Requires minimal blood volume, ideal for pediatrics.
SF Cube Technology
- Scatter: Determines cell size and complexity.
- Fluorescence: Identifies DNA/RNA content, crucial for detecting abnormal cells like RET and NRBCs.
- Cube: 3D analysis ensures superior separation of cell populations.
Efficient Workflow
- Auto-Loader: Continuous loading with a 50-tube capacity.
- Reflex Testing: Automatic re-run rules based on user-defined criteria.
| Throughput | 110 tests/hour |
| Parameters | 37 reportable parameters (Whole Blood) |
| Sample Volume | 80 μL (Whole Blood), 35 μL (Predilute) |
| Display | 10.4-inch Touch Screen |
| Data Storage | Up to 100,000 results including graphics |
Clinical Confidence
The BC-6200 excels in detecting abnormal cells:
- NRBC: Accurate counting in every CBC+Diff run without extra reagents.
- RET: Reliable reticulocyte analysis for anemia classification.
- PLT-O: Optical platelet counting to eliminate interference from fragmented RBCs.
